| MOQ: | 1 piece |
| Price: | Negotiable |
| Standard Packaging: | PVC bag, wooden case,carton |
| Delivery Period: | 5-20days |
| Payment Method: | TT,LC |
| Supply Capacity: | 1000000 |

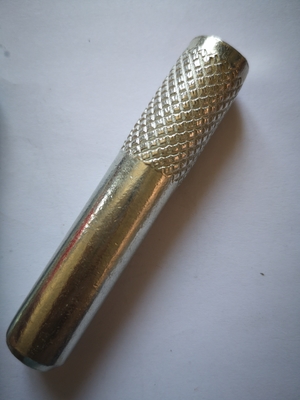

304 Stainless Steel Embossed Shaft Non-Standard Carbon Steel Shaft Automatic Lathe Precision Fixed Shaft
Firm without deformation, less effort and more stability
Raw material craftsmanship
High hardness/toughness/durable use
Various materials, customized according to customer needs, carbon steel, stainless steel, aluminum alloy, brass, titanium alloy, etc
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Metal stamping includes a variety of sheet-metal forming manufacturing processes, such
as punching using a machine press or stamping press, blanking, embossing, bending, flan
ging, and coining. This could be a single stage operation where every stroke of the press pro
duce the desired form on the sheet metal part, or could occur through a series of stages.
Metal Stamped Parts & Components
We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.
Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:
Steel
Aluminum
Stainless Steel
Plastics
Copper
Brass
Specialty Metals
Tool&Die Profile
| General Capabilities | Design Modeling 2D, 3D,processing,assembling | Die Location Technical Support | Inspection |
| Detail Tooling Documentation | DFMEA/PFMEA | Quick Building Prototypes | |
| Die Types | Forming Dies | Precision Progressive Stamping Dies | Secondary Dies |
| High Speed Steel Stamping Dies | Precision Blanking Dies | Forming Die | |
| Tooling Material | Carbide(CD650,V3,KD20) | ASP-23 | ASP-60 |
| S55C---45#55 | AL7075 | SKD11 | |
| Tooling Life | 50 Million to 1000 Million Times | ||
| Die Concept | 2-Plate Die | 3-Plate Die | Module Die |
| Production Equipment | CNC | SODICK Nice Surface EDM | P/G |
| Drill | SODICK Wire Cutting Machine | J/G | |
| Milling Machine | WAIDA Profile Grinder Machine | ||
| Stamping Equipment | AIDA | PURDER | MICO |
| MICO | |||
| Stamping Product | Custom Stamping | SIM shrapnel | Spring clip |
| Battery shrapnel | Shield Drawing | Press-Fit Terminal | |
| Lead Frame | Power Contact Terminal | PC Terminal parts | |
| Additional Services Provided | Custom Packing | Packaging | Heat Treat |
| Plating | |||
| Delivery | 3-5 Week | 3-6 Week | 4-7 Week |
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
| By Express | By Air | By Sea | |
| West Europe | 3-5 days | 4-6 days | 22-30days |
| USA &Canada | 3-4days | 5-6 days | 16-27days |
| South Asia | 3-5 days | 3-7 days | 12-20 days |
| Japan&South Korea | 2-3 days | 3-4 days | 10-13 days |
| Russia | -------- | --------- | 30-40 days |
Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
Stamping die Shows:
Video
|
|
