Integrated Circuit Micro Lead Frame , Exquisite Metal Stamping Parts Progressive Die

Integrated Circuit Micro Lead Frame , Exquisite Metal Stamping Parts Progressive Die

MOQ: 1 piece
Price: Negotiable
Standard Packaging: PVC bag, wooden case,carton
Delivery Period: 5-20days
Payment Method: TT,LC
Supply Capacity: 1000000
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Mould Life:
2000000-5000000 Shots
Press Force:
45Ton
Tolerance:
0.1μm
Main Tooling Material:
YG15
Treatment:
Heat Treatment
Cavity:
Two Rows
Processing Way:
WEDM
Minimum Order Quantity:
1 piece
Price:
Negotiable
Packaging Details:
PVC bag, wooden case,carton
Delivery Time:
5-20days
Payment Terms:
TT,LC
Supply Ability:
1000000
High Light:

led lead frame

,

micro lead frame

Product Description



Exquisite metal stamping parts IC lead frame / led lead frame / copper lead frame / integrated



circuit lead frame





Lead frames are the metal structures inside a chip package that carry signals from the die to the outside.

Leadframe for a QFP package
The die inside the package is typically glued to the lead frame, and then bond wires attach the die pads to the leads. In the last stage of the manufacturing process, the lead frame is moulded in a plastic case, and outside of the lead frame is cut-off, separating all leads.



Progressive die for lead frame:
-- Discrete device lead frame dies: TO-92,TO-196,ITO-220,TO-252,TO-247,TO-3P etc.
-- IC lead frame dies:DIP-8L,DIP-16L,DIP-18L,DIP-28L,SOP-8L,SOP-16L,SOP-28L,SSOP-8L,SSOP-18L etc.
-- SMT lead frame dies: SOT-23,SOT-143 etc.



A. Material:0.2mm, 0.25mm, 0.3 mm thick brass, copper or stainless steel
B. Finishing:silver,gold ,palladium,tin ,nickel plated
C. Size: customized
D. Packing method: Polybag, carton box



Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



How to start a new mould business?

1. Quote According to samples/picture/design, 2/3 D drawing and specification

2. Discussion Mould core/base material, cavity number, runner type, price, payment, etc

3.PI Approval for all terms

4. Deposit 50% by T/T

5. Product Design Our engineer will check product drawing, and pick up the unreasonable terms

6. Mould Design Our engineer will do DFM and send PPT to customers for approval

7. Mould making We start to make mould after customers confirmed the drawing

8. Mold Testing We will express trial samples to customers by DHL for confirmation

9. Mould repair We will modify the mould according to customer’s feedback
 ↓
10. Mould approval Express trial samples by DHL again till products approval

11. Balance payment 50% by T/T before delivery

12. Delivery Delivery by sea or air, all documents as customer required



We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days




Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.





FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM

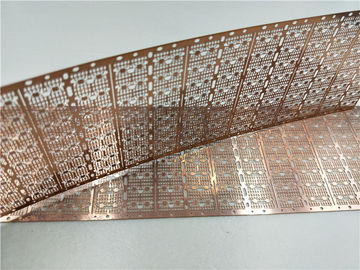

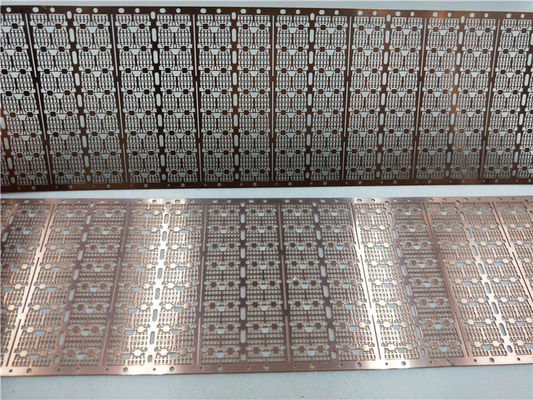

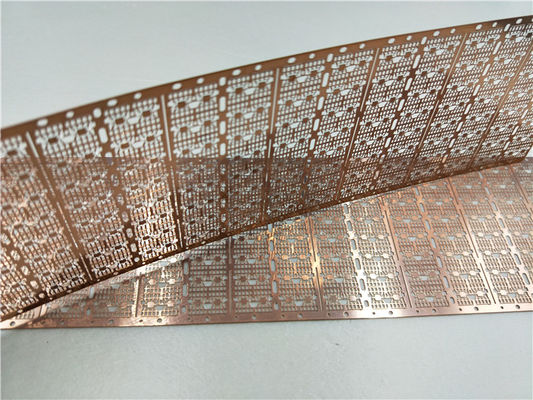

Stamping die Shows:

Integrated Circuit Micro Lead Frame , Exquisite Metal Stamping Parts Progressive Die 0Integrated Circuit Micro Lead Frame , Exquisite Metal Stamping Parts Progressive Die 1
