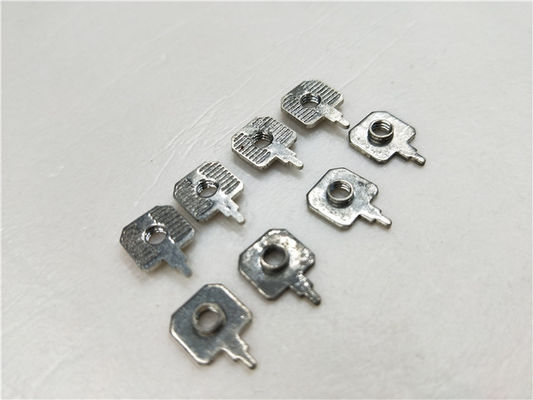

Precision Metal Stamping Mold Two Cavities Progressive Tooling Components

Precision Metal Stamping Mold Two Cavities Progressive Tooling Components
Precision Metal Stamping Mold Two Cavities Progressive Tooling Components
Precision Metal Stamping Mold Two Cavities Progressive Tooling Components Precision Metal Stamping Mold Two Cavities Progressive Tooling Components Precision Metal Stamping Mold Two Cavities Progressive Tooling Components Precision Metal Stamping Mold Two Cavities Progressive Tooling Components Precision Metal Stamping Mold Two Cavities Progressive Tooling Components

Large Image :  Precision Metal Stamping Mold Two Cavities Progressive Tooling Components

Product Details:
Place of Origin: XIAMEN.CHINA
Brand Name: METS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case without need of fumigation
Delivery Time: 7days-35days
Payment Terms: TT,LC
Supply Ability: 25 sets per month

Precision Metal Stamping Mold Two Cavities Progressive Tooling Components

Description
Type Of Die: Progressive Die Mould Life: 8 Million Strokes
Press Force: 45Ton Tolerance: ±0.03mm
Main Tooling Material: ASP-23 Cavity: Two Cavities
Thickness: 2mm Processing Way: WEDM,CNC Machining
High Light:

stamping die components

,

sheet metal stamping parts



Nonstandard metal fabrication precision small metal parts, Progressive stamping tooling





Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



Metal stamping includes a variety of sheet-metal forming manufacturing processes, such
as punching using a machine press or stamping press, blanking, embossing, bending, flan
ging, and coining. This could be a single stage operation where every stroke of the press pro
duce the desired form on the sheet metal part, or could occur through a series of stages.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Designs, tests and manufactures metal stamping dies using innovative, cost-effective engineering solutions for medium to large complex tooling systems. Our manufacturing capabilities include the production of progressive dies, transfer dies, line dies and more. Custom stamping dies can be created for various applications in industries such as automotive and aerospace



Metal Stamped Parts & Components

We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.

Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:



Steel
Aluminum
Stainless Steel
Plastics
Copper
Brass
Specialty Metals



Tool&Die​ Profil

Tool&Die Material SKD11 DC53 45# steel Cr12mov P20
Accuracy 0.002mm
Capacity Tool &die :30 sets/month part :1million /month
Design software 3D: Pro-E

2D: auto CAD
Surface Treatment Powder coating,Hot galvanized,Painting,Polishing,Brushing,Chrome,
Test Equipment Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester,
universal testing machine & Coordinate-Detector
Thickness 0.1-2.0mm or other special available
Lead time 15-55 days according to products Max: 2 Weeks (On Initial Order)
Standard ANSI. API.BS.DIN.JIS.GB.etc
Equipment 1) Stamping machine
2) CNC milling and turning, grinding, honing, lapping, broaching and other secondary machining.
3) integral CNC machineries & four machining centers, such as milling, broaching, drilling,
turning, planning, grinding machinery and three-axle machining centers.
Productions Cover Sheet metal auto parts, Auto stamping parts,Home Electrics stampingparts, Device stamping parts



Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.



To get quick response, please contact us by mail directly

Q: How can I get quotation quickly
A: Please send your inquiry and technical details to Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.



Stamping die Shows:

Precision Metal Stamping Mold Two Cavities Progressive Tooling Components 0Precision Metal Stamping Mold Two Cavities Progressive Tooling Components 1
