Customized Precision Progressive Sheet Metal Dies Witch / Sockets Contactor Plug Pins

Customized Precision Progressive Sheet Metal Dies Witch / Sockets Contactor Plug Pins

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Material:
Brass Alloy
Mould Life:
1,000,000-3,000,000 Shots
Press Force:
35 Ton
Tolerance:
±0.034mm
Main Tooling Material:
DC53
Precision:
0.005mm
Cavity:
One Row
Thickness:
1mm
Processing Way:
High Speed Wire Cutting
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

progressive sheet metal

,

sheet metal forming dies

Product Description

Customized precision witch and sockets contactor plug pins progressive die



Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



METS can design and build “bending and forming” tools, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.

Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Tool&Die​ Profile

General Capabilities Design Modeling 2D, 3D,processing,assembling Die Location Technical Support Inspection
Detail Tooling Documentation DFMEA/PFMEA Quick Building Prototypes
Die Types Forming Dies Precision Progressive Stamping Dies Secondary Dies
High Speed Steel Stamping Dies Precision Blanking Dies Forming Die
Tooling Material Carbide(CD650,V3,KD20) ASP-23 ASP-60
S55C---45#55 AL7075 SKD11
Tooling Life 50 Million to 1000 Million Times
Die Concept 2-Plate Die 3-Plate Die Module Die
Production Equipment CNC SODICK Nice Surface EDM P/G
Drill SODICK Wire Cutting Machine J/G
Milling Machine WAIDA Profile Grinder Machine
Stamping Equipment AIDA PURDER MICO
MICO
Stamping Product Custom Stamping SIM shrapnel Spring clip
Battery shrapnel Shield Drawing Press-Fit Terminal
Lead Frame Power Contact Terminal PC Terminal parts
Additional Services Provided Custom Packing Packaging Heat Treat
Plating
Delivery 3-5 Week 3-6 Week 4-7 Week



Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.



FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM



To get quick response, please contact us by mail directly

Q: How can I get quotation quickly
A: Please send your inquiry and technical details to email kellylan10@hotmail.com Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.

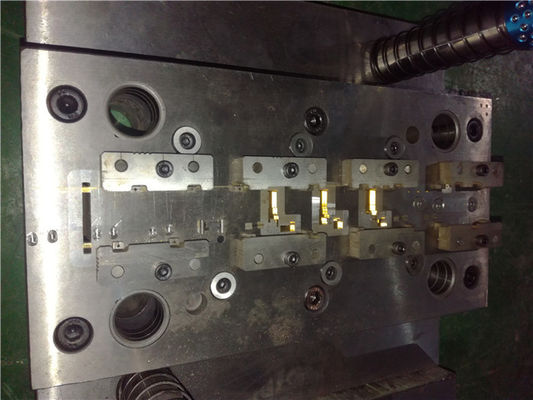

Stamping die Shows:

Customized Precision Progressive Sheet Metal Dies Witch / Sockets Contactor Plug Pins 0Customized Precision Progressive Sheet Metal Dies Witch / Sockets Contactor Plug Pins 1Customized Precision Progressive Sheet Metal Dies Witch / Sockets Contactor Plug Pins 2
