Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel

Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel
Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel
Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel

Large Image :  Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel

Product Details:
Place of Origin: XIAMEN.CHINA
Brand Name: METS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case without need of fumigation
Delivery Time: 7days-35days
Payment Terms: TT,LC
Supply Ability: 25 sets per month

Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel

Description
Type Of Die: Cutting Die Material: Galvanized Sheet
Mould Life: 1,000,000-3,000,000 Shots Press Force: 25Ton
Tolerance: ±0.002 Main Tooling Material: DC53
Thickness: 0.5mm Processing Way: WEDM,CNC
High Light:

auto stamping parts

,

automotive metal stamping

Elongated slot steel Channel bending Part Metal Sheet Spare Part cutting



Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.

Riveting die is a sturdy and attractive way to make one part joins in custom metal . This tooling add one vibrating disk.The center small parts will be in the progressive die by vibrating disk. Here you'll find this riveting tools is easy riveting and the speed is very fast,neerly 120ps/munite.

Here at METS Precision-Tool it’s our goal to design and build our Compound Dies to exceed 100 strokes per minute to support high volume production. We can achieve this by building in sensors and other accessories to protect the die from damage. Cycle time is always kept in mind when designing and building our Compound Die tooling. We can build the die to stamp the part at the accuracy you need.
Parts are produced when the feed system pushes (strip or coil stock) of raw material into the Compound Die; at each stroke or cycle a finished flat part will blanked or released from the raw material. The feed rate of the material is determined by the size of the part. Larger parts need more time to exit the die, where smaller parts exit quicker allowing for faster run times. Typically, compound dies do not require a cut-off station because the parts are blanked through from the strip, but many times is added to help manage scrap material. Finished parts will be removed from the die by a knock-out and will fall onto a chute or slider where they flow into the collection bin. The scrap will exit the die in strip form or in piece form depending on if you’ve included a scrap cut-off station. Scrap can be collected in bins or hoppers on the exit end of the die
Designs, tests and manufactures metal stamping dies using innovative, cost-effective engineering solutions for medium to large complex tooling systems. Our manufacturing capabilities include the production of progressive dies, transfer dies, line dies and more. Custom stamping dies can be created for various applications in industries such as automotive and aerospace





Tool&Die​ Profil

Tool&Die Material SKD11 DC53 45# steel Cr12mov P20
Accuracy 0.002mm
Capacity Tool &die :30 sets/month part :1million /month
Design software 3D: Pro-E

2D: auto CAD
Surface Treatment Powder coating,Hot galvanized,Painting,Polishing,Brushing,Chrome,
Test Equipment Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester,
universal testing machine & Coordinate-Detector
Thickness 0.1-2.0mm or other special available
Lead time 15-55 days according to products Max: 2 Weeks (On Initial Order)
Standard ANSI. API.BS.DIN.JIS.GB.etc
Equipment 1) Stamping machine
2) CNC milling and turning, grinding, honing, lapping, broaching and other secondary machining.
3) integral CNC machineries & four machining centers, such as milling, broaching, drilling,
turning, planning, grinding machinery and three-axle machining centers.
Productions Cover Sheet metal auto parts, Auto stamping parts,Home Electrics stampingparts, Device stamping parts



Mould building process

Step Item high speed stamping die
1 Quotation Quote competitive price according to your details (drawing or sample, and related requirements).
2 Order Sign agreement after confirming price
3 Mould design Design the mould structure drawing according to your product drawing or sample,
then send the tooling drawings to you for confirmation.
4 Mould making After your confirmation of our drawing, we begin to make the moulds,
during manufacturing program,
we send you mould building progress with pictures every week, for you to know our process.
5 First trial We will make the stamping die first trial on time, then send you video or picture
and trial samples for you to confirm.
Or you can also come to our factory .And we will inspect them and issue the report.
6 Quality confirm You will confirm our stamping die quality according to sample.
If you need to adjust the product structure, we can help you to change it further.
7 Delivery Ship the stamping die after it is completely OK, packed by wooden case.


We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days



FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM

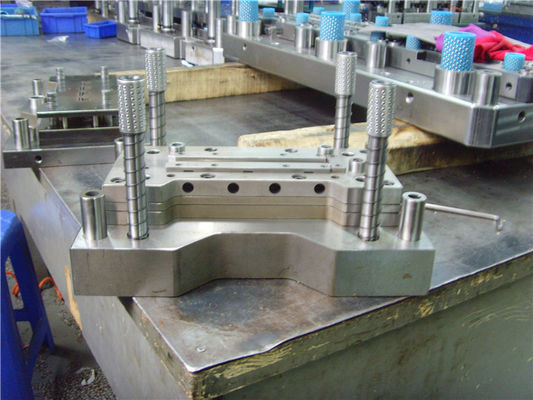

Stamping die Shows:

Bending Stamped Sheet Metal Parts , Custom Die Cut Elongated Slot Steel Channel 0
