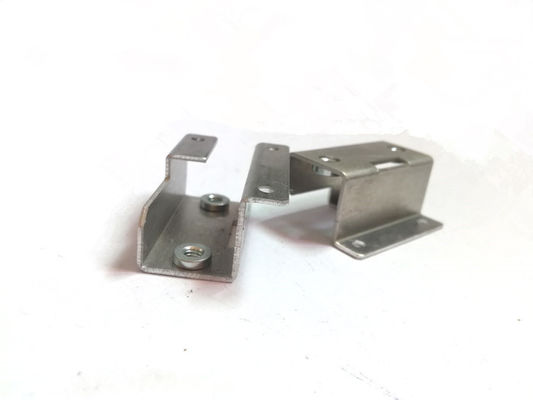

Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws

Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws
Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws
Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws

Large Image :  Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws

Product Details:
Place of Origin: XIAMEN.CHINA
Brand Name: METS
Model Number: P001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden case without need of fumigation
Delivery Time: 7days-35days
Payment Terms: TT,LC
Supply Ability: 25 sets per month

Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws

Description
Type Of Die: Progressive Die Production Material: Aluminum
Mould Life: 1000 Million Times Of Strokes Press Force: 35Ton
Tolerance: ±0.05mm Main Tooling Material: SKD11
Precision: 0.001mm Cavity: Two Cavities
Thickness: 0.5mm Processing Way: WEDM,CNC,Grinding
High Light:

stamping die parts

,

progressive die stamping

Aluminium alloy heat sink bending blanking die riveting two screws

Metal Stamping Die Capability


· Die Insert Tolerence: +/-0.005mm


· Stamping Speed: 1000SPM/min


· Tooling Life: 50-300 million times



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Riveting die is a sturdy and attractive way to make one part joins in custom metal . This tooling add one vibrating disk.The center small parts will be in the progressive die by vibrating disk. Here you'll find this riveting tools is easy riveting and the speed is very fast,neerly 120ps/munite.
Here at METS Precision-Tool it’s our goal to design and build our Compound Dies to exceed 100 strokes per minute to support high volume production. We can achieve this by building in sensors and other accessories to protect the die from damage. Cycle time is always kept in mind when designing and building our Compound Die tooling. We can build the die to stamp the part at the accuracy you need.
Parts are produced when the feed system pushes (strip or coil stock) of raw material into the Compound Die; at each stroke or cycle a finished flat part will blanked or released from the raw material. The feed rate of the material is determined by the size of the part. Larger parts need more time to exit the die, where smaller parts exit quicker allowing for faster run times. Typically, compound dies do not require a cut-off station because the parts are blanked through from the strip, but many times is added to help manage scrap material. Finished parts will be removed from the die by a knock-out and will fall onto a chute or slider where they flow into the collection bin. The scrap will exit the die in strip form or in piece form depending on if you’ve included a scrap cut-off station. Scrap can be collected in bins or hoppers on the exit end of the die
Designs, tests and manufactures metal stamping dies using innovative, cost-effective engineering solutions for medium to large complex tooling systems. Our manufacturing capabilities include the production of progressive dies, transfer dies, line dies and more. Custom stamping dies can be created for various applications in industries such as automotive and aerospace
Tool&Die​ Profile

Part thickness0.5-2mm
Spare parts for Dies and insetsAccept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on
Die typeProgressive deep drawing die ,progressive tool, stamping forming die,compound die, ect.
Die materialYG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,
Die useHome appliance (automotive parts, household metal parts,electric metal parts,terminal block parts)
Part materialCold rolled steel,stainless steel,copper,aluminum
Machinery EquipmentMilling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine,
Die precisionHigh precision machining, minimum 0.003mm
Trial out press25~180T
First trial sample5-10 sets free



We accept your any request on shipment.By air, by sea,and by Express are acceptable.

 By ExpressBy AirBy Sea
West Europe3-5 days4-6 days22-30days
USA &Canada3-4days5-6 days16-27days
South Asia3-5 days3-7 days12-20 days
Japan&South Korea2-3 days3-4 days10-13 days
Russia-----------------30-40 days



Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM

Stamping die Shows:



Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws 0Aluminium Alloy Progressive Die Stamping  , Heat Sink Bending Metal Press Dies Riveting Two Screws 1
